THE ARCHITECTURE

Barn

Open Spaces. Honest Materials. Timeless Character.

The Barn House reimagines classic barn architecture as a warm and comfortable family home. Its simple form, vaulted interior spaces, exposed structural elements, and balanced cream and graphite palette create a residence that feels open, grounded, and naturally connected to its surroundings.

SPECIFIED PALETTE

#5C5C5C(Accent)

#2E2E2E(Dark)

#F5F4F0(Light)

Exterior Finish Theme: Warm cream exterior with a graphite roof, dark trim, and natural timber accents.

SQUARE FOOTAGE

2,400 sq ft

Total usable internal space.

BEDROOMS / BATHS

3 Bed / 4 Bath

Optimized room configurations.

ARCHITECTURAL STYLE

The Rowan House

Stylistic classification.

INCLUDED DRAWINGS

7 Sheets

Full permit-ready set.

PLAN SET

Blueprint Explorer

Browse the detailed drafts and sheets included in this set. Select a drawing category below to examine structural layouts and elevation dimensions.

Select Sheet:

DRAWING SPECIFICATIONS

Format:Vector PDF / CAD

Print size:24" × 36" (Arch D)

Scale:1/4" = 1'-0"

12345

ABCD

PERMITSET PLANS
PROJECT:BARN

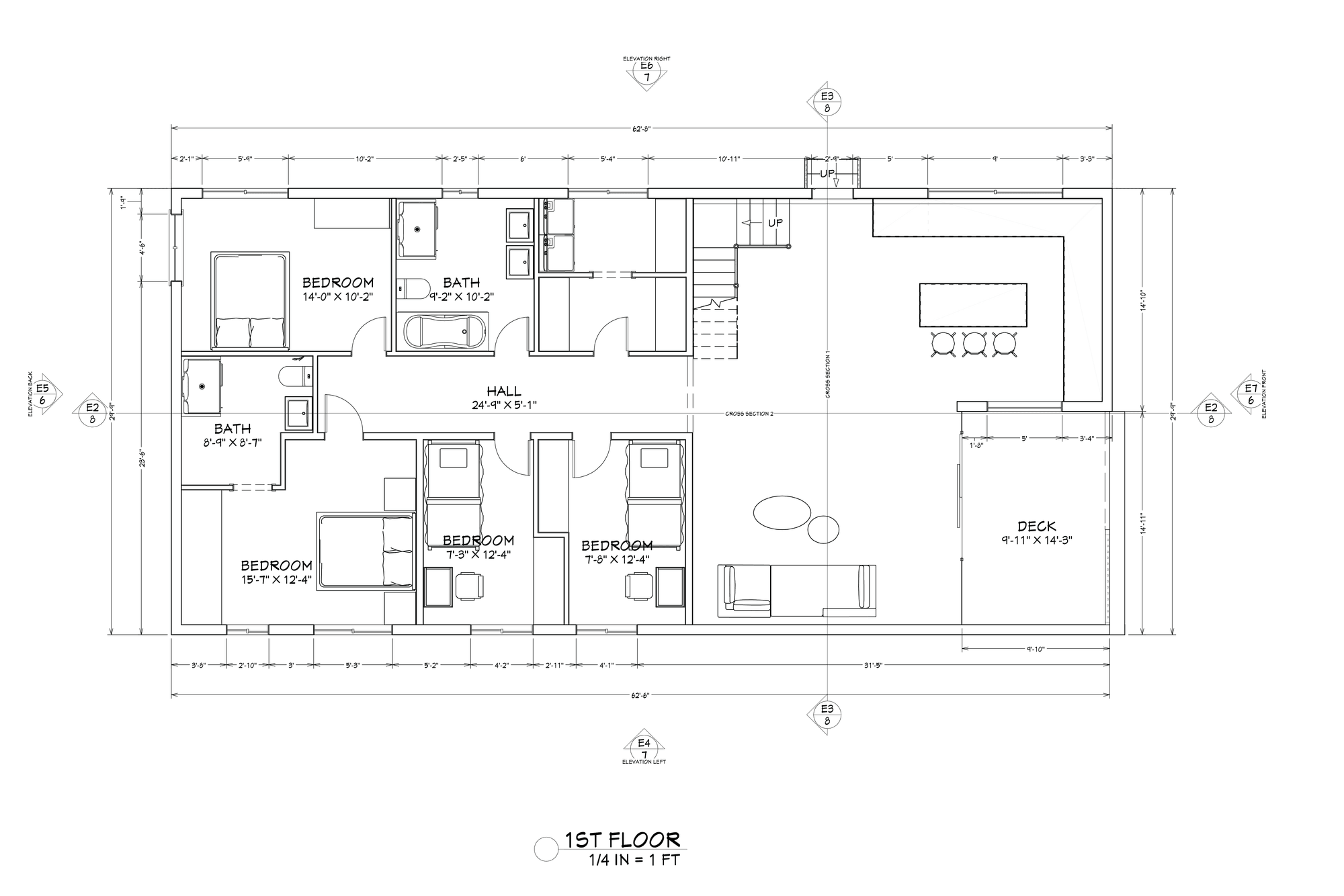

SHEET:1ST FLOOR PLAN
SCALE:1/4" = 1'-0"
STATUS:RELEASED

* Click on the blueprint sheet to open full screen zoom magnifier.Open Full Sheet ↗

SPECIFICATIONS

Materiality & Style Theme

Every Barn design is engineered to balanced dimensional specifications, marrying local code guidelines with modern aesthetics. Builders can utilize these direct specifications to establish initial cladding, framing, and roofing quotes.

Permit-Ready Structural Detailing

Optimized for quick approvals and compliant with global IRC standards.

Precise Building Profiles

Clear framing profiles, structural sections, and complete window and door schedule coordinates.

Project Finishes

House Palette Theme

Warm cream exterior with a graphite roof, dark trim, and natural timber accents.

Render Mood & Setting

Bright daylight, open grassland, mature trees, and a relaxed countryside setting.

Hex Spec Chip Board

#5C5C5CAccent Paint

#2E2E2ETrim / Roof

#F5F4F0Siding Base

RENDER VISUALIZATION

Exterior 3D Views

Bright daylight, open grassland, mature trees, and a relaxed countryside setting. Detailed renders showing lighting, textures, and integration with nature.
