The Ava House

Contemporary

Site Plan · Ground Floor Plan · Sections ×2 · Elevations ×4 · Roof Plan · Renders ×5

SCROLL

THE ARCHITECTURE

Contemporary

Clean Geometry. Bold Contrast. Modern Living.

The Modern House is defined by crisp architectural lines, generous glazing, and a refined black and white material palette. Strong geometric forms and carefully positioned windows create a bright contemporary residence with a confident exterior and an open connection between indoor and outdoor spaces.

SPECIFIED PALETTE

#1C1C1C(Accent)

#0A0A0A(Dark)

#F2F2F2(Light)

Exterior Finish Theme: White exterior walls with black columns, window frames, door surrounds, and garage doors.

SQUARE FOOTAGE

2,600 sq ft

Total usable internal space.

BEDROOMS / BATHS

4 Bed / 3 Bath

Optimized room configurations.

ARCHITECTURAL STYLE

The Ava House

Stylistic classification.

INCLUDED DRAWINGS

6 Sheets

Full permit-ready set.

PLAN SET

Blueprint Explorer

Browse the detailed drafts and sheets included in this set. Select a drawing category below to examine structural layouts and elevation dimensions.

DRAWING SPECIFICATIONS

Format:Vector PDF / CAD

Print size:24" × 36" (Arch D)

Scale:1/4" = 1'-0"

12345

ABCD

PERMITSET PLANS
PROJECT:CONTEMPORARY

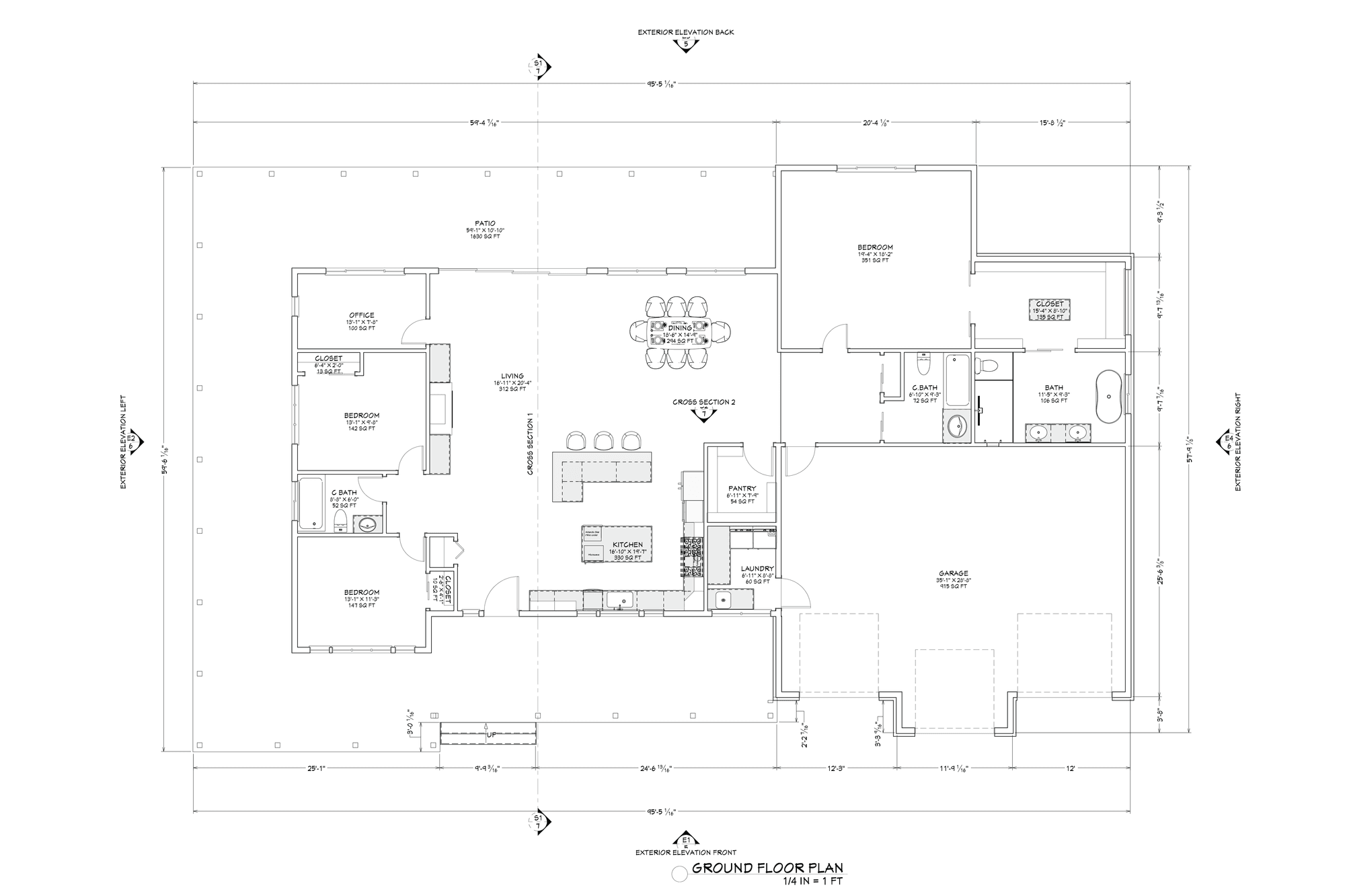

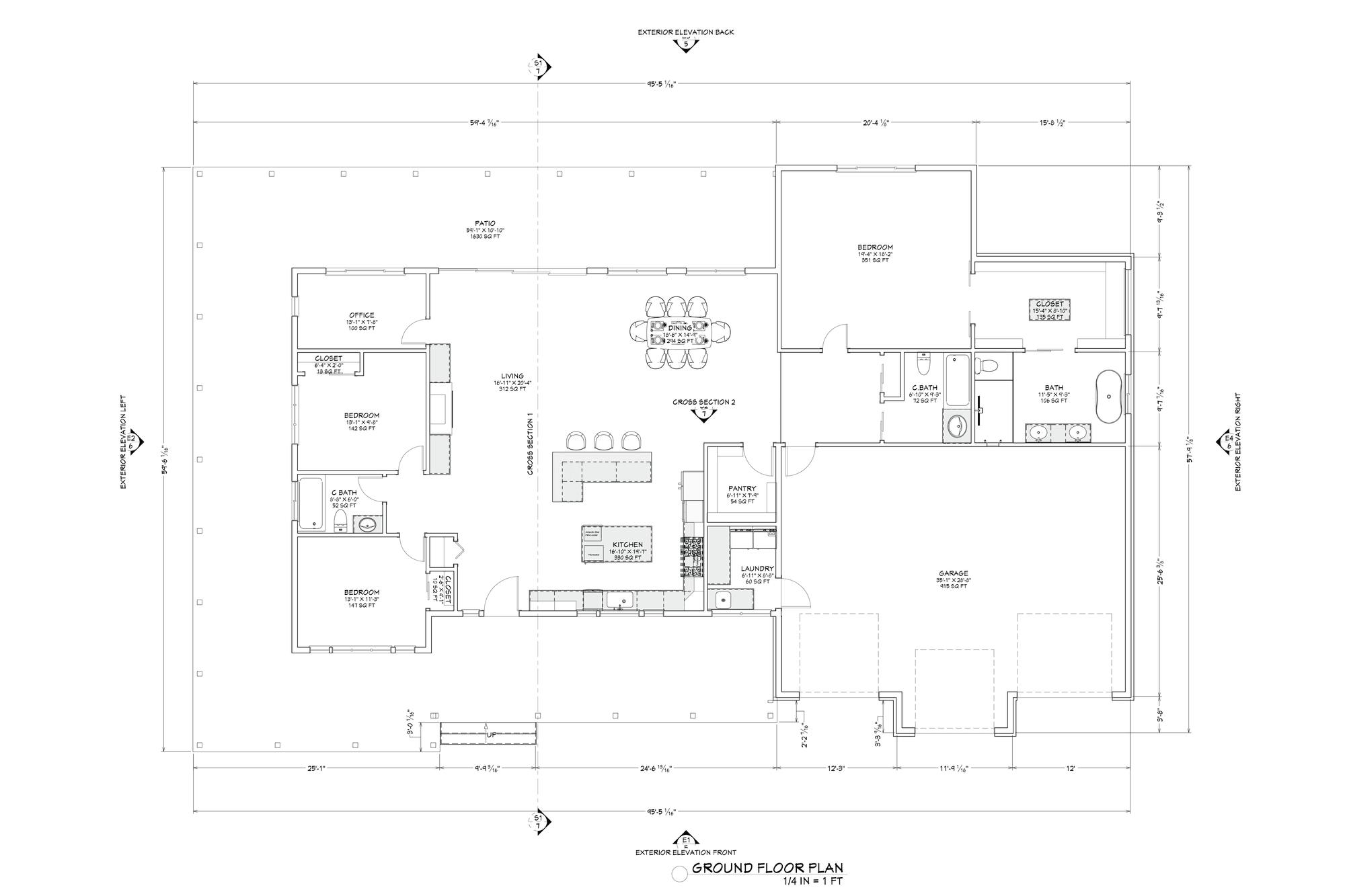

SHEET:GROUND FLOOR PLAN
SCALE:1/4" = 1'-0"
STATUS:RELEASED

* Click on the blueprint sheet to open full screen zoom magnifier.Open Full Sheet ↗

SPECIFICATIONS

Materiality & Style Theme

Every Contemporary design is engineered to balanced dimensional specifications, marrying local code guidelines with modern aesthetics. Builders can utilize these direct specifications to establish initial cladding, framing, and roofing quotes.

Permit-Ready Structural Detailing

Optimized for quick approvals and compliant with global IRC standards.

Precise Building Profiles

Clear framing profiles, structural sections, and complete window and door schedule coordinates.

Project Finishes

House Palette Theme

White exterior walls with black columns, window frames, door surrounds, and garage doors.

Render Mood & Setting

Clear daylight, landscaped greenery, soft shadows, and a polished residential setting.

Hex Spec Chip Board

#1C1C1CAccent Paint

#0A0A0ATrim / Roof

#F2F2F2Siding Base

RENDER VISUALIZATION

Exterior 3D Views

Clear daylight, landscaped greenery, soft shadows, and a polished residential setting. Detailed renders showing lighting, textures, and integration with nature.
