The Mason House

Ranch

Site Plan · Ground Floor Plan · Sections ×2 · Elevations ×4 · Roof Plan · Renders ×5

SCROLL

THE ARCHITECTURE

Ranch

Single Level Comfort. Open Living. Natural Warmth.

The Ranch House is designed around the simplicity and convenience of single-level living. Its broad roofline, balanced exterior proportions, warm timber columns, and strong indoor-outdoor connection create a relaxed residence suited to everyday family life.

SPECIFIED PALETTE

#8B6530(Accent)

#54380C(Dark)

#F5ECD8(Light)

Exterior Finish Theme: White exterior walls with bronze timber columns and a graphite roof.

SQUARE FOOTAGE

1,900 sq ft

Total usable internal space.

BEDROOMS / BATHS

3 Bed / 2 Bath

Optimized room configurations.

ARCHITECTURAL STYLE

The Mason House

Stylistic classification.

INCLUDED DRAWINGS

6 Sheets

Full permit-ready set.

PLAN SET

Blueprint Explorer

Browse the detailed drafts and sheets included in this set. Select a drawing category below to examine structural layouts and elevation dimensions.

DRAWING SPECIFICATIONS

Format:Vector PDF / CAD

Print size:24" × 36" (Arch D)

Scale:1/4" = 1'-0"

12345

ABCD

PERMITSET PLANS
PROJECT:RANCH

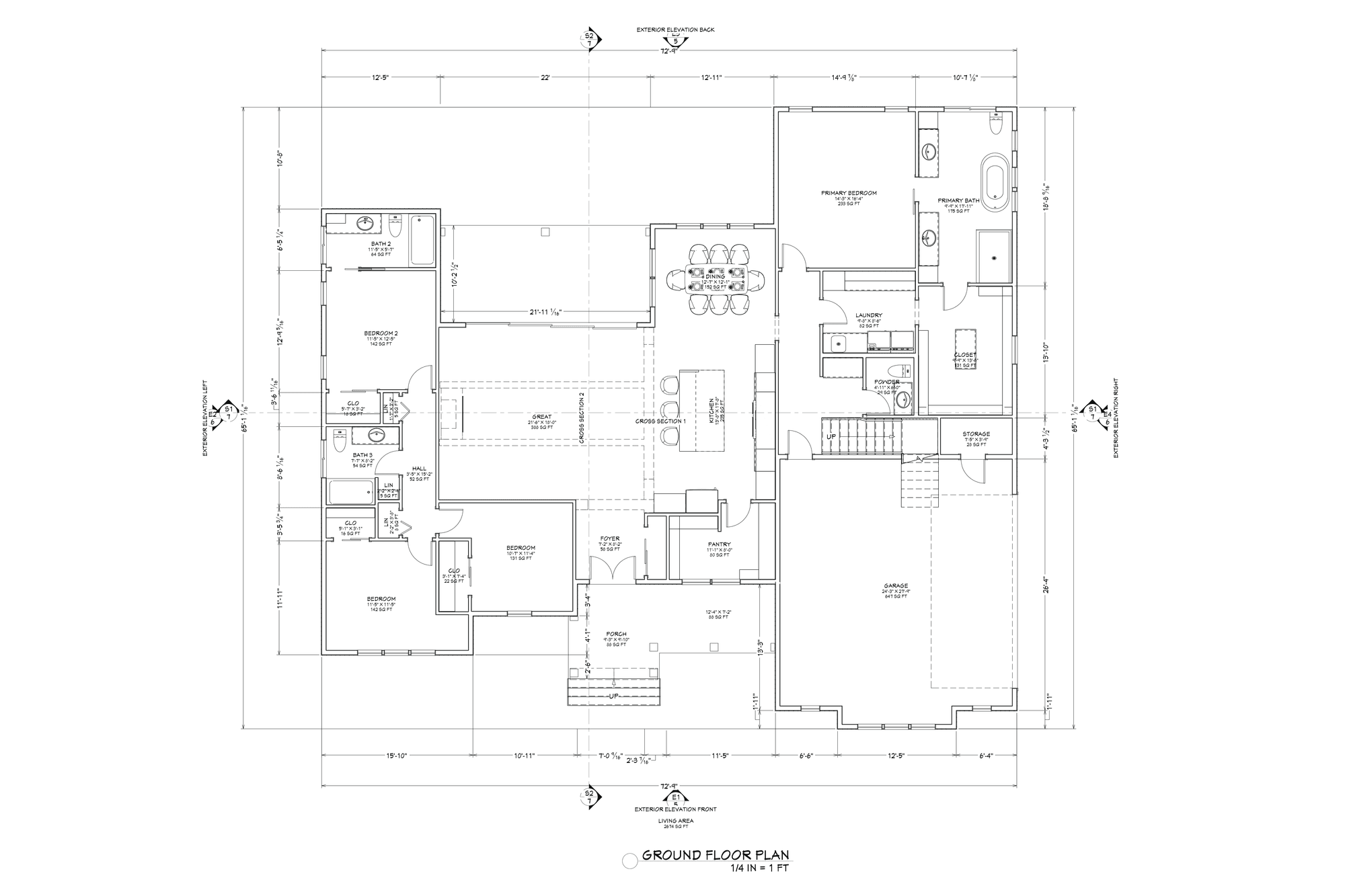

SHEET:GROUND FLOOR PLAN
SCALE:1/4" = 1'-0"
STATUS:RELEASED

* Click on the blueprint sheet to open full screen zoom magnifier.Open Full Sheet ↗

SPECIFICATIONS

Materiality & Style Theme

Every Ranch design is engineered to balanced dimensional specifications, marrying local code guidelines with modern aesthetics. Builders can utilize these direct specifications to establish initial cladding, framing, and roofing quotes.

Permit-Ready Structural Detailing

Optimized for quick approvals and compliant with global IRC standards.

Precise Building Profiles

Clear framing profiles, structural sections, and complete window and door schedule coordinates.

Project Finishes

House Palette Theme

White exterior walls with bronze timber columns and a graphite roof.

Render Mood & Setting

Clear daylight, wide lawns, natural landscaping, and a comfortable outdoor living environment.

Hex Spec Chip Board

#8B6530Accent Paint

#54380CTrim / Roof

#F5ECD8Siding Base

RENDER VISUALIZATION

Exterior 3D Views

Clear daylight, wide lawns, natural landscaping, and a comfortable outdoor living environment. Detailed renders showing lighting, textures, and integration with nature.
