The Bennett House

Craftsman

Site Plan · Ground Floor Plan · Sections ×2 · Elevations ×4 · Roof Plan · Renders ×5

SCROLL

THE ARCHITECTURE

Craftsman

Crafted Details. Balanced Proportions. Enduring Style.

The Craftsman House combines practical family living with the handcrafted character associated with Craftsman design. Deep roof overhangs, expressive columns, layered exterior details, and a balanced silver and graphite palette give the home depth, warmth, and lasting curb appeal.

SPECIFIED PALETTE

#4A4A52(Accent)

#26262C(Dark)

#F0F0F2(Light)

Exterior Finish Theme: Pale silver exterior walls with a dark graphite roof and complementary trim.

SQUARE FOOTAGE

2,100 sq ft

Total usable internal space.

BEDROOMS / BATHS

3 Bed / 2 Bath

Optimized room configurations.

ARCHITECTURAL STYLE

The Bennett House

Stylistic classification.

INCLUDED DRAWINGS

6 Sheets

Full permit-ready set.

PLAN SET

Blueprint Explorer

Browse the detailed drafts and sheets included in this set. Select a drawing category below to examine structural layouts and elevation dimensions.

DRAWING SPECIFICATIONS

Format:Vector PDF / CAD

Print size:24" × 36" (Arch D)

Scale:1/4" = 1'-0"

12345

ABCD

PERMITSET PLANS
PROJECT:CRAFTSMAN

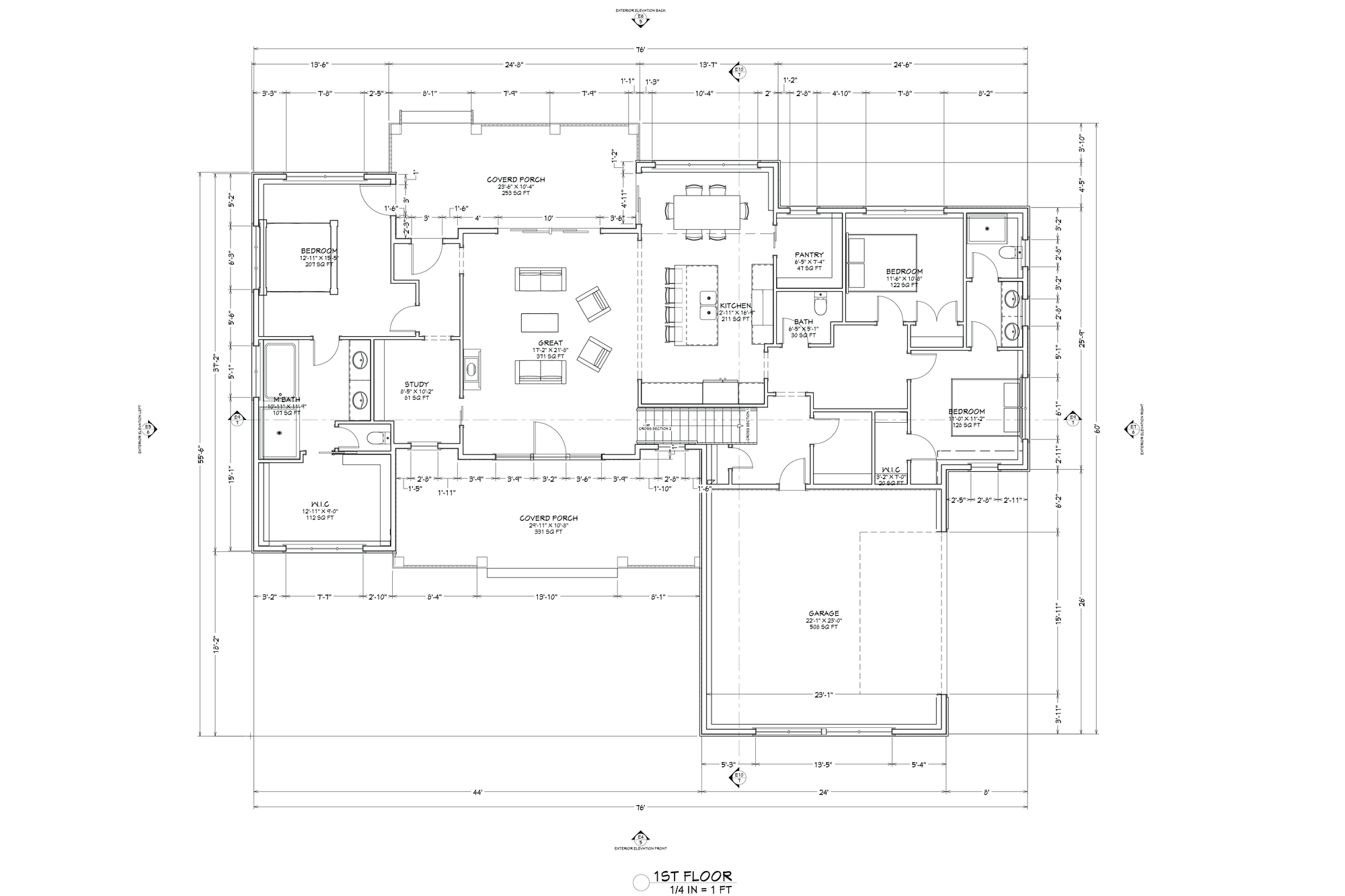

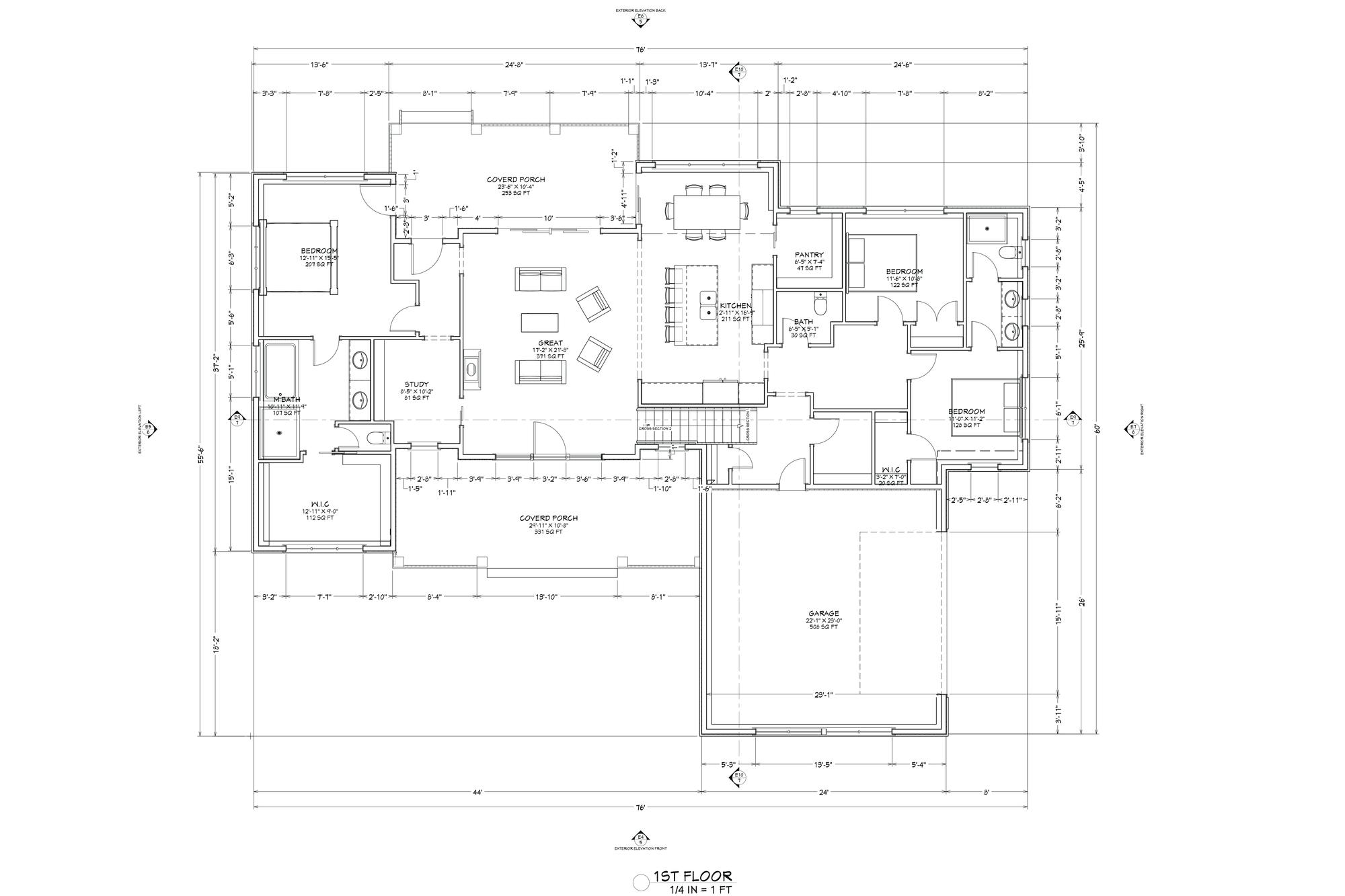

SHEET:GROUND FLOOR PLAN
SCALE:1/4" = 1'-0"
STATUS:RELEASED

* Click on the blueprint sheet to open full screen zoom magnifier.Open Full Sheet ↗

SPECIFICATIONS

Materiality & Style Theme

Every Craftsman design is engineered to balanced dimensional specifications, marrying local code guidelines with modern aesthetics. Builders can utilize these direct specifications to establish initial cladding, framing, and roofing quotes.

Permit-Ready Structural Detailing

Optimized for quick approvals and compliant with global IRC standards.

Precise Building Profiles

Clear framing profiles, structural sections, and complete window and door schedule coordinates.

Project Finishes

House Palette Theme

Pale silver exterior walls with a dark graphite roof and complementary trim.

Render Mood & Setting

Natural daylight, defined shadows, landscaped surroundings, and a calm residential setting.

Hex Spec Chip Board

#4A4A52Accent Paint

#26262CTrim / Roof

#F0F0F2Siding Base

RENDER VISUALIZATION

Exterior 3D Views

Natural daylight, defined shadows, landscaped surroundings, and a calm residential setting. Detailed renders showing lighting, textures, and integration with nature.
