The Eliana House

Modern Farm

Site Plan · Ground Floor Plan · Sections ×2 · Elevations ×4 · Roof Plan · Renders ×4

SCROLL

THE ARCHITECTURE

Modern Farm

Familiar Form. Modern Detail. Effortless Warmth.

The Farmhouse House brings farmhouse character into a clean contemporary composition. Warm wood-inspired finishes soften the exterior, while graphite accents define the rooflines, openings, and architectural details. The result is a comfortable family home that feels familiar, refined, and current.

SPECIFIED PALETTE

#9B7040(Accent)

#5E3E18(Dark)

#F7F0E4(Light)

Exterior Finish Theme: Light bronze wood finishes with graphite roofing, trim, and accent elements.

SQUARE FOOTAGE

2,500 sq ft

Total usable internal space.

BEDROOMS / BATHS

4 Bed / 3 Bath

Optimized room configurations.

ARCHITECTURAL STYLE

The Eliana House

Stylistic classification.

INCLUDED DRAWINGS

6 Sheets

Full permit-ready set.

PLAN SET

Blueprint Explorer

Browse the detailed drafts and sheets included in this set. Select a drawing category below to examine structural layouts and elevation dimensions.

DRAWING SPECIFICATIONS

Format:Vector PDF / CAD

Print size:24" × 36" (Arch D)

Scale:1/4" = 1'-0"

12345

ABCD

PERMITSET PLANS
PROJECT:MODERN FARM

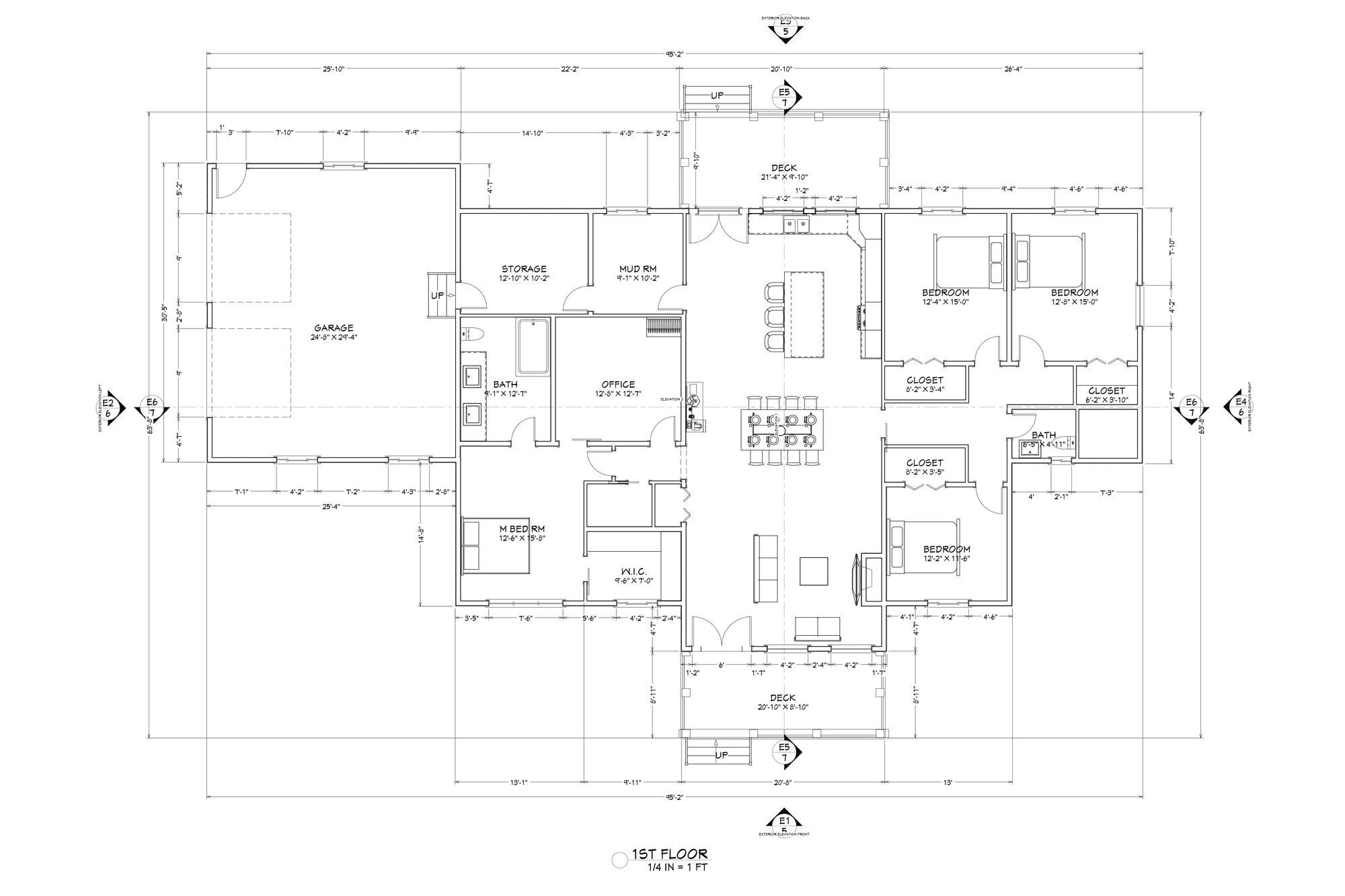

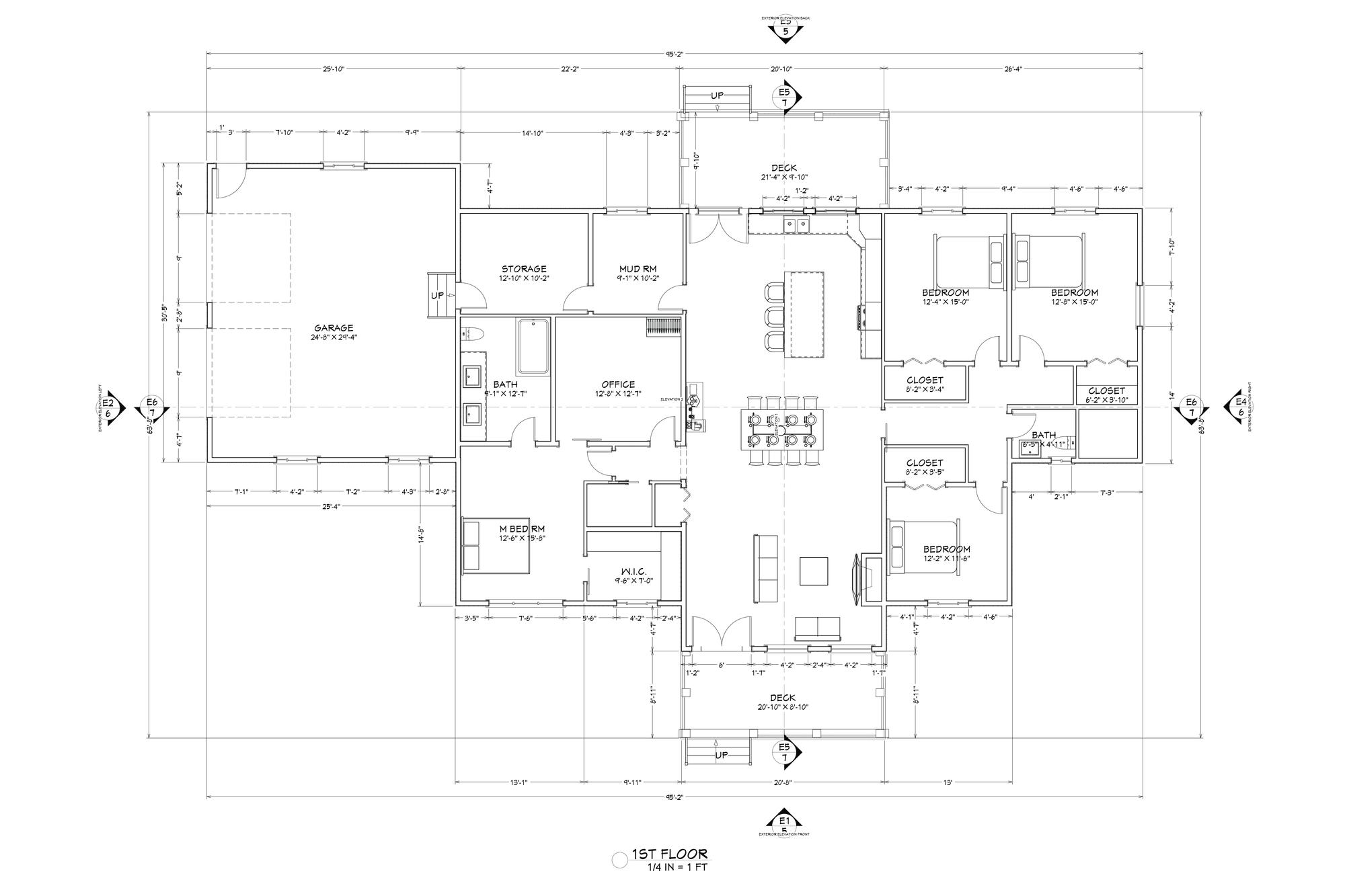

SHEET:GROUND FLOOR PLAN
SCALE:1/4" = 1'-0"
STATUS:RELEASED

* Click on the blueprint sheet to open full screen zoom magnifier.Open Full Sheet ↗

SPECIFICATIONS

Materiality & Style Theme

Every Modern Farm design is engineered to balanced dimensional specifications, marrying local code guidelines with modern aesthetics. Builders can utilize these direct specifications to establish initial cladding, framing, and roofing quotes.

Permit-Ready Structural Detailing

Optimized for quick approvals and compliant with global IRC standards.

Precise Building Profiles

Clear framing profiles, structural sections, and complete window and door schedule coordinates.

Project Finishes

House Palette Theme

Light bronze wood finishes with graphite roofing, trim, and accent elements.

Render Mood & Setting

Sunny daylight, open lawns, green trees, and a bright suburban or countryside setting.

Hex Spec Chip Board

#9B7040Accent Paint

#5E3E18Trim / Roof

#F7F0E4Siding Base

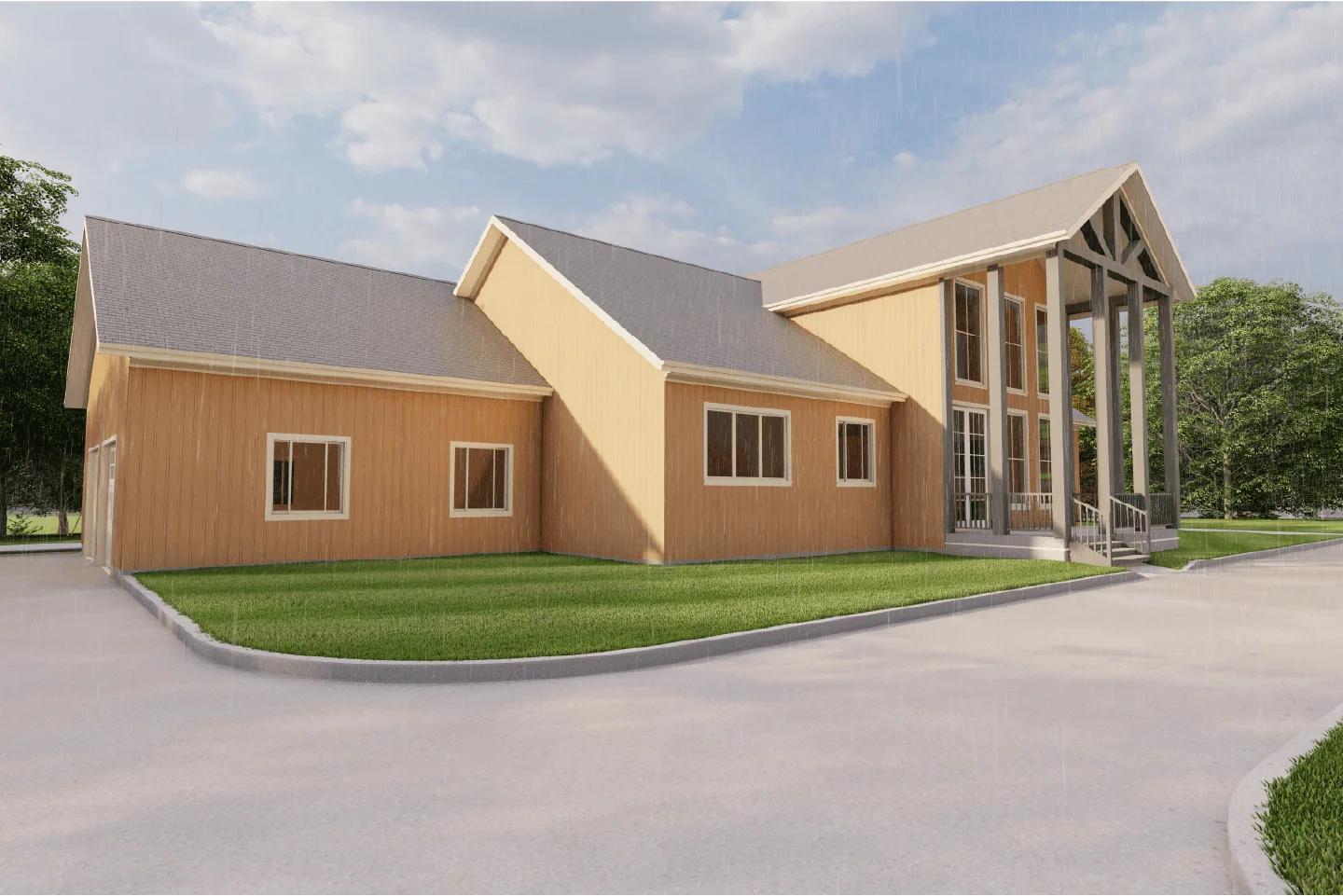

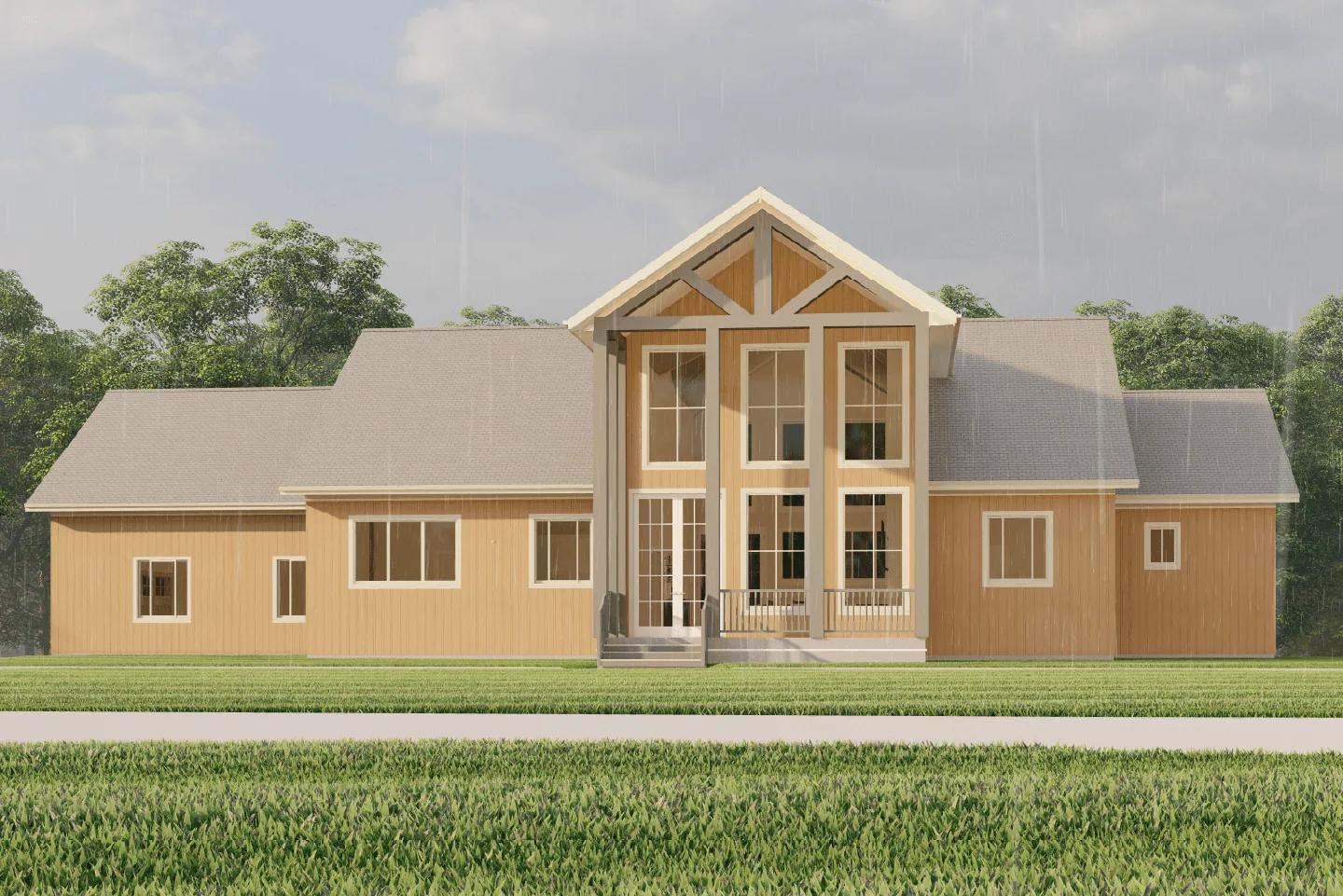

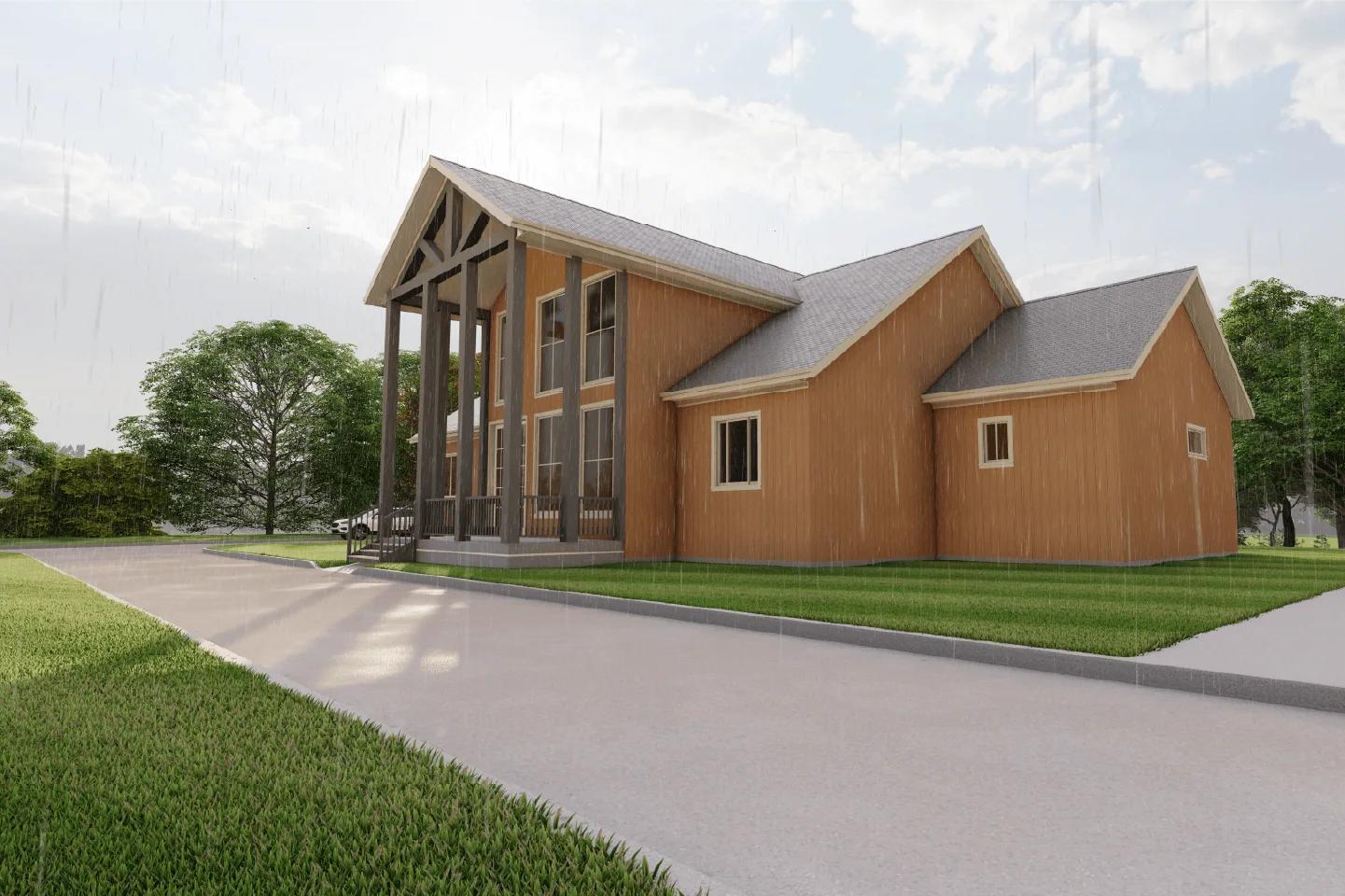

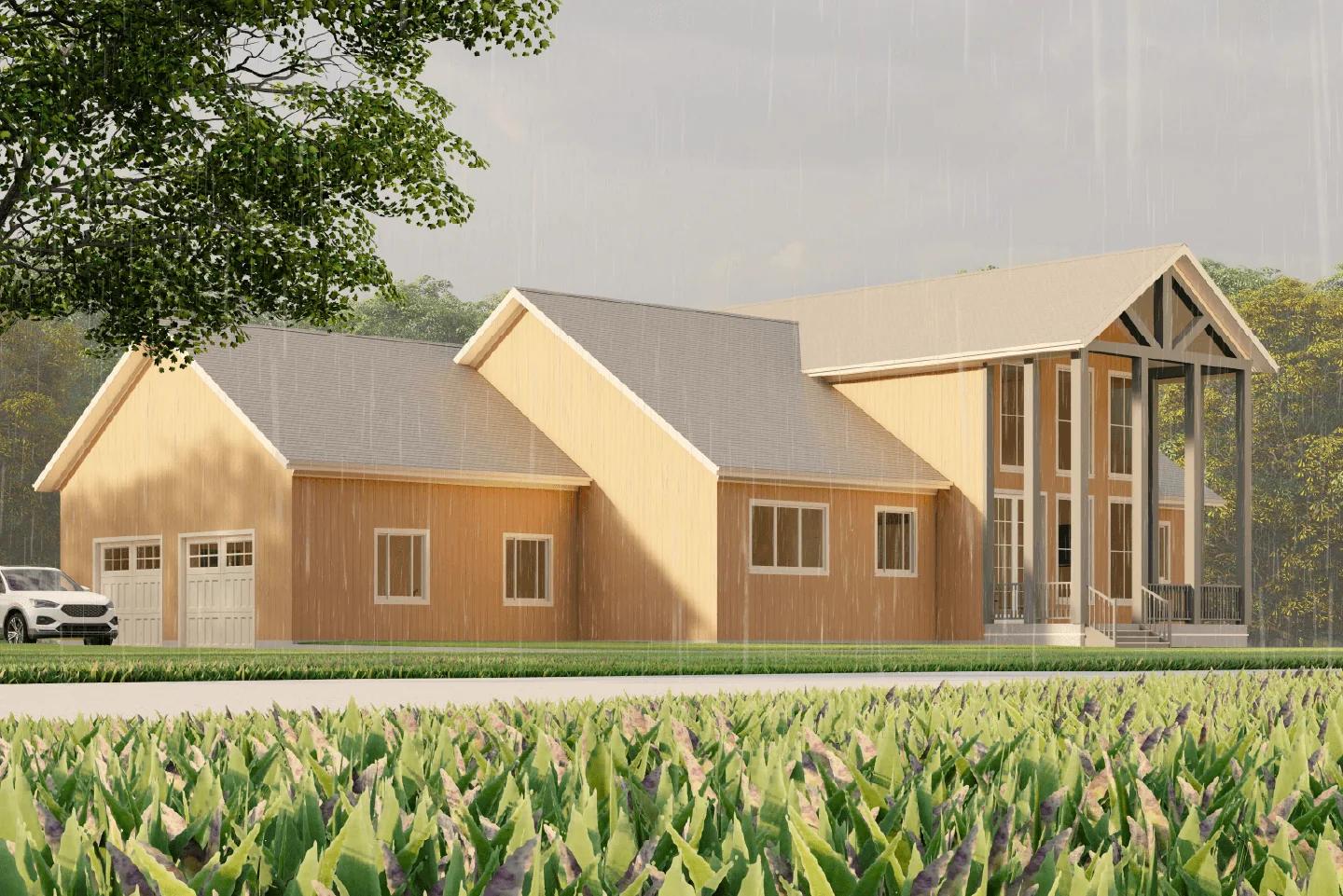

RENDER VISUALIZATION

Exterior 3D Views

Sunny daylight, open lawns, green trees, and a bright suburban or countryside setting. Detailed renders showing lighting, textures, and integration with nature.
